Day 43 Results

I discounted one of the Fe XXI lines that was included in yesterday's plots (the first plot in the original loop set), so I updated the temporal evolutions made yesterday. I also made some other changes to these plots, such as standardizing the y axis range, adding an error bar for the doppler velocity plot, and adding units to the axis titles. The results of these changes are shown below.

The reduced Fe XXI loop set:

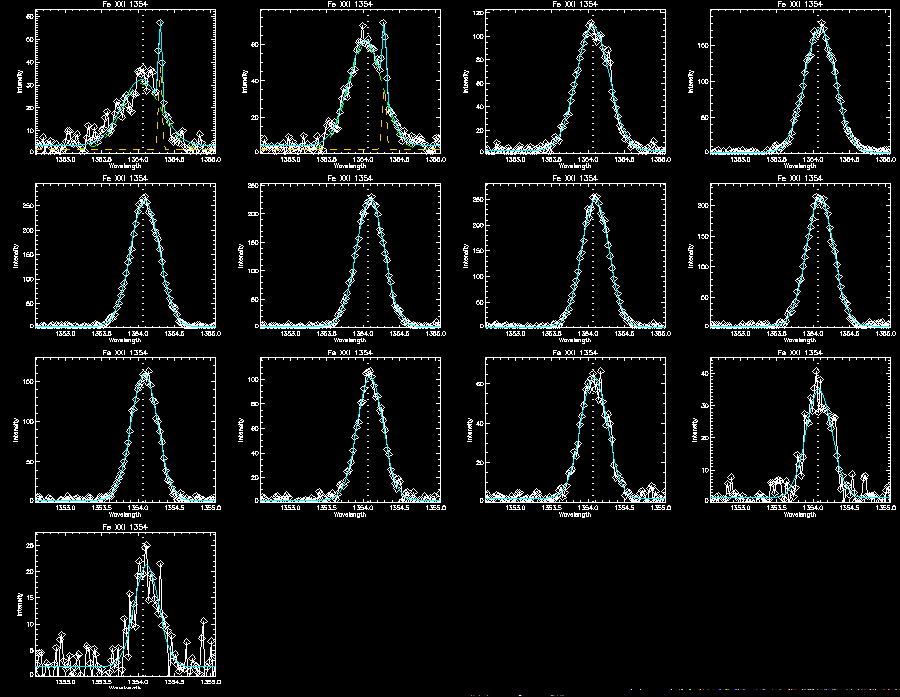

Loop Fe XXI

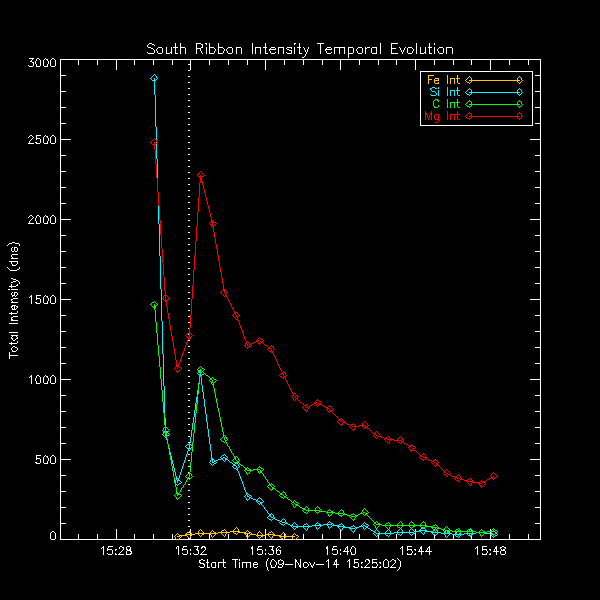

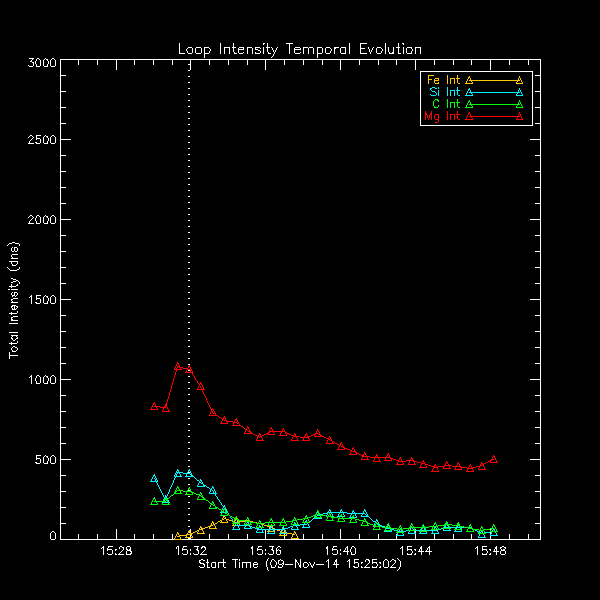

Intensity temporal evolutions:

North Ribbon Int Temp     South Ribbon Int Temp     Loop Int Temp

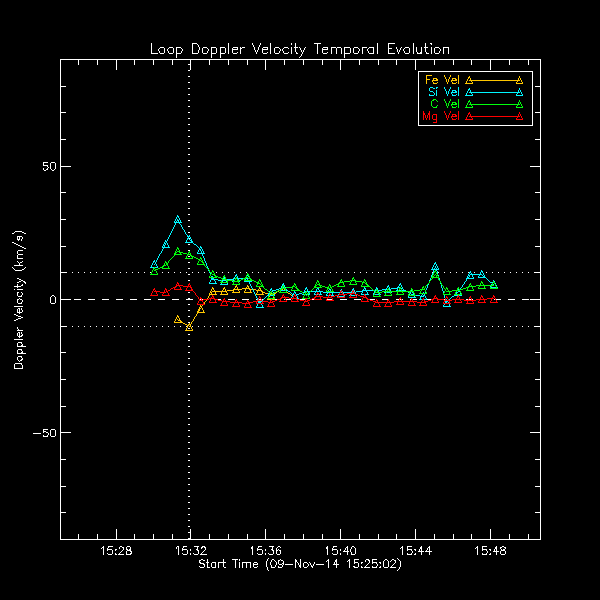

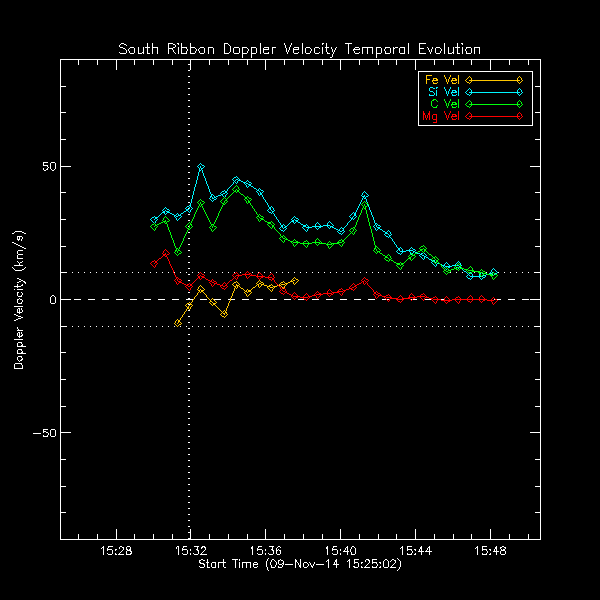

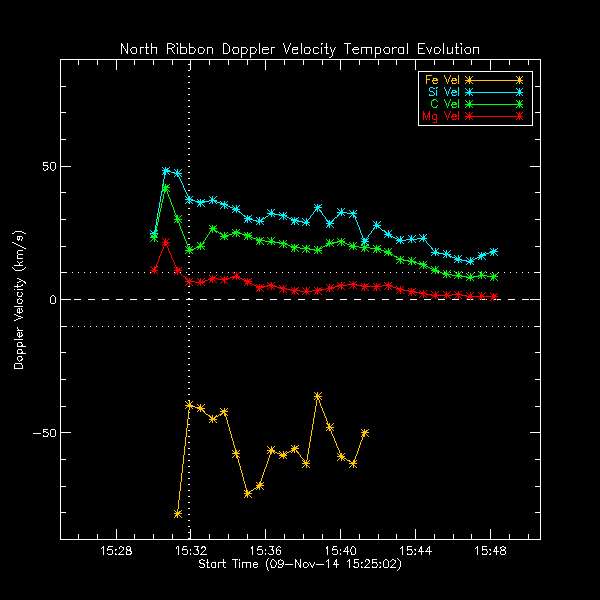

Doppler velocity temporal evolutions:

North Ribbon Vd Temp     South Ribbon Vd Temp     Loop Vd Temp

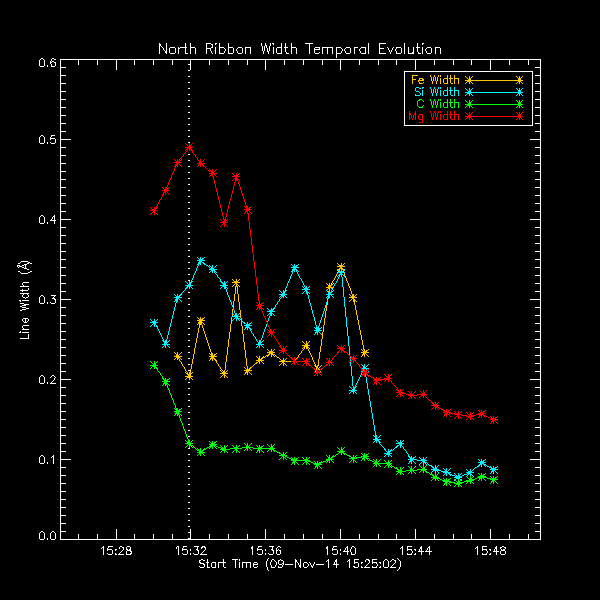

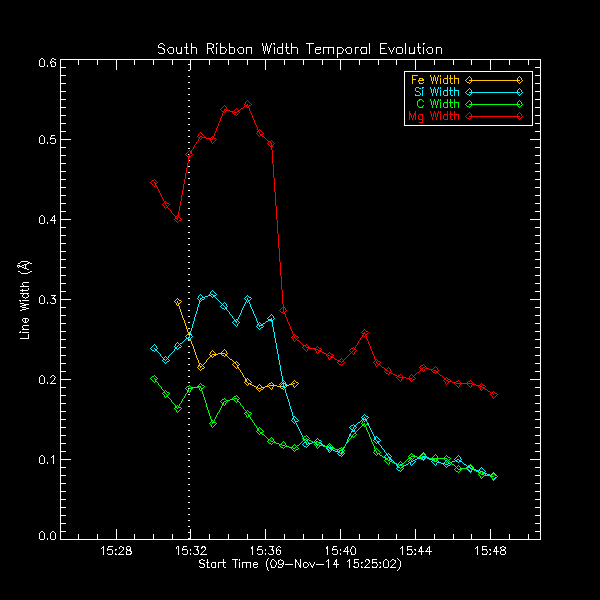

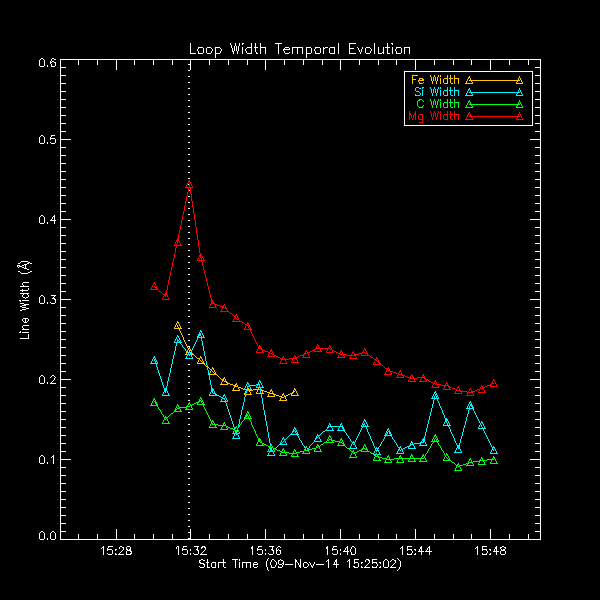

Line Width temporal evolutions:

North Ribbon W Temp     South Ribbon W Temp     Loop Ribbon W Temp

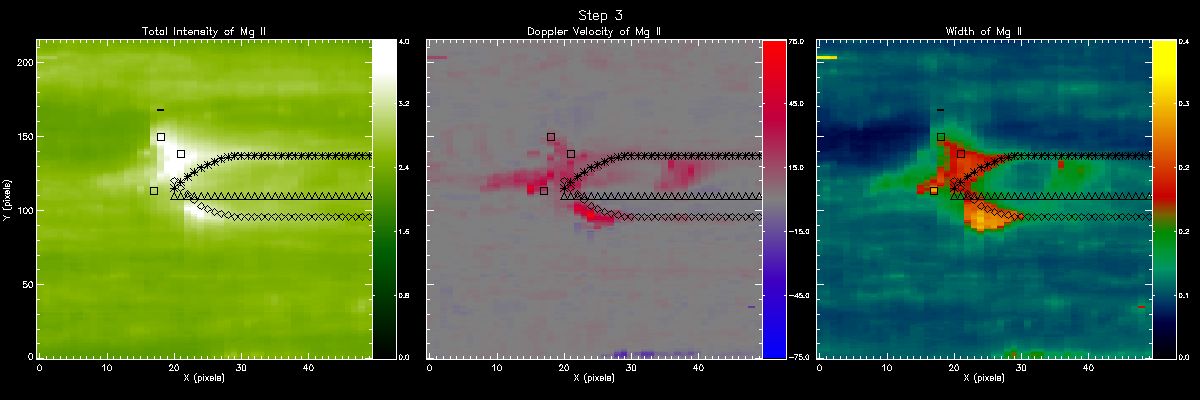

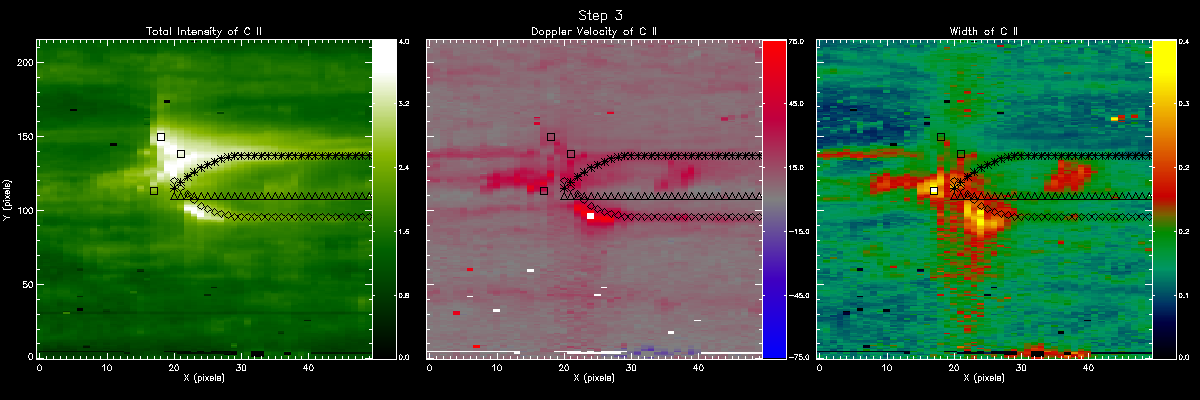

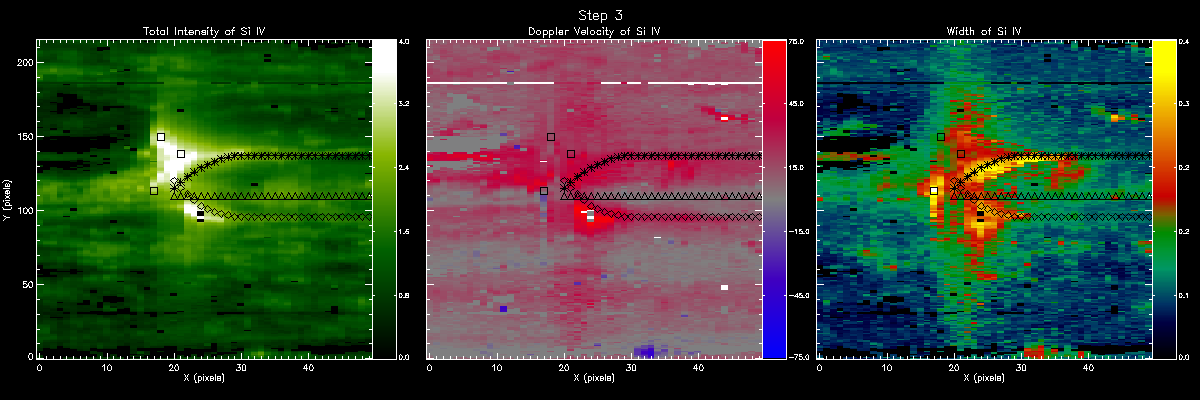

I also edited all the maps. They now include three additional pixels (who's line profiles are shown below the maps), and a colorbar, for reference.

Fourth Step Map Positions
Fourth Step Map Positions
Fourth Step Map Positions

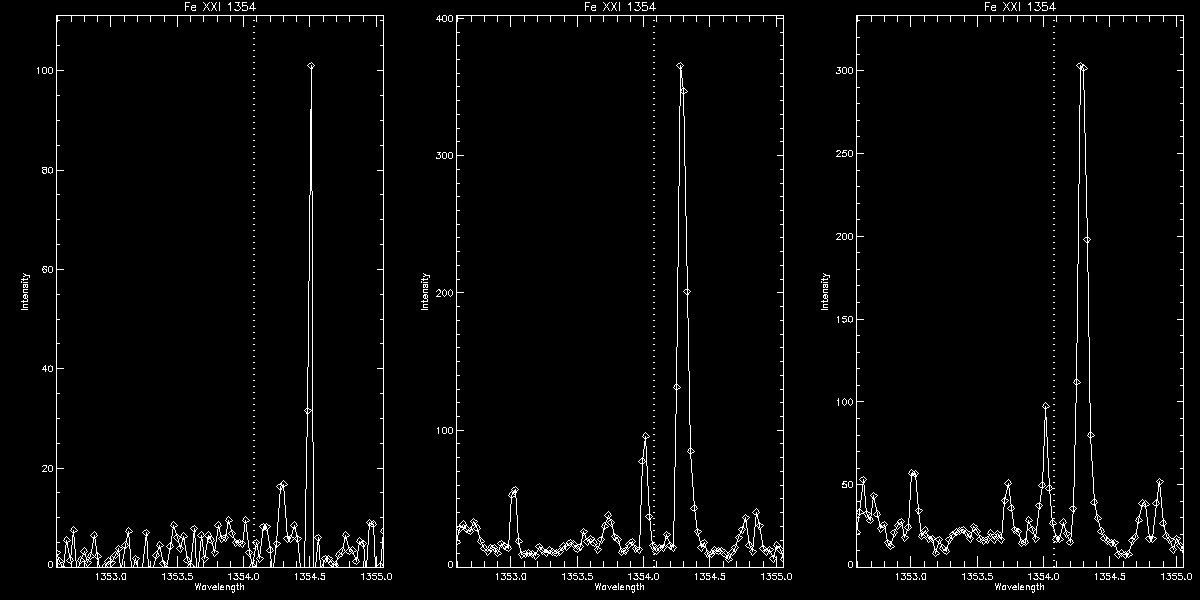

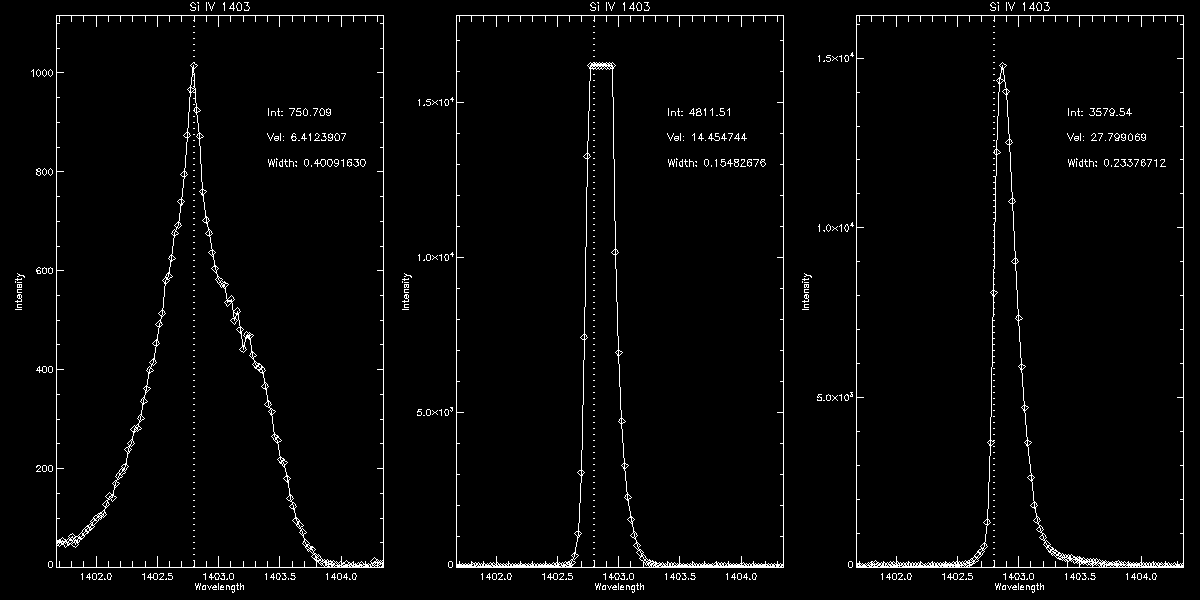

Here are the line profiles corresponding to the square points on the maps above. For each element, the plots are arranged temporally, i.e. the earliest time's position, to the latest.

Other Si Plots

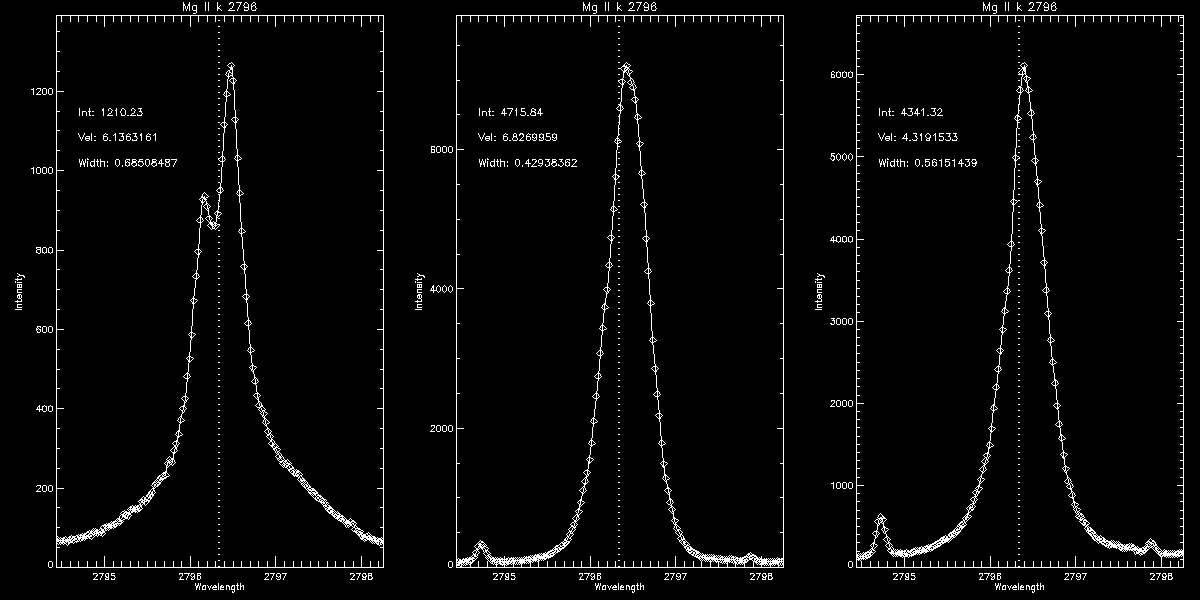

Other Mg Plots

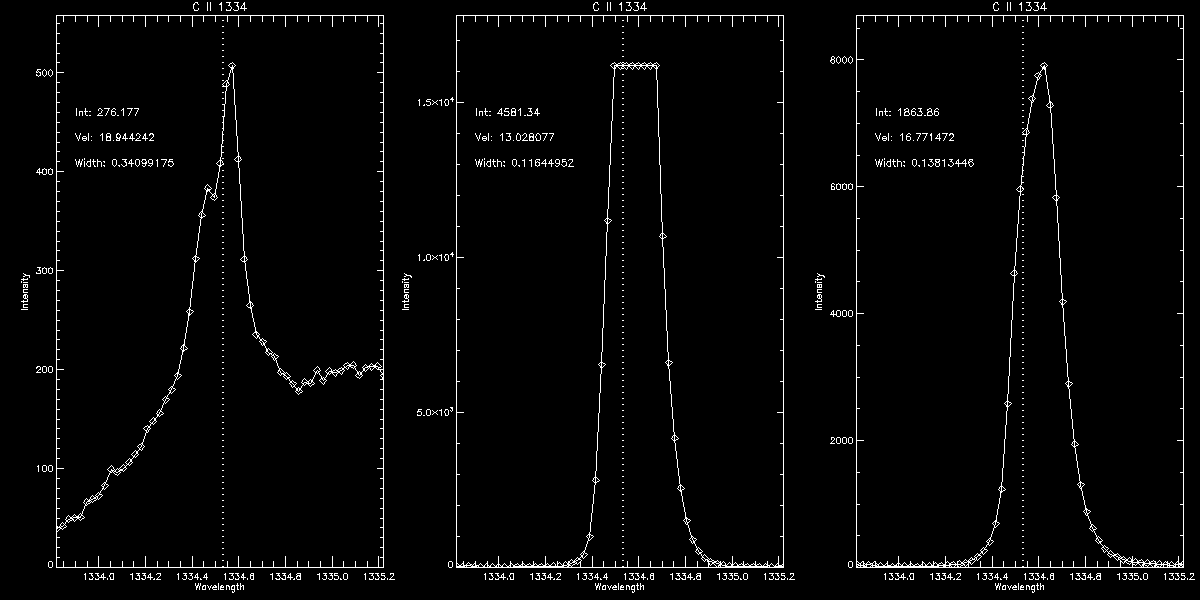

Other C Plots
Other Fe Plots
